PHP5.2.6をApache2.2.8にインストールする

０．改訂履歴

2008.06.04　新規作成

１．はじめに

　　このドキュメントでは，PHPをインストールする際に，Apache2のmpm=workerに対応したマルチスレッド対応で，OpenSSL および画像変換エンジンのいgdと，それらに関係する圧縮ライブラリのzlib,JPEGやPNGのライブラリであるlibjpegやlibpngをコンパイルエラーの出ない様にインストールし，外部との通信を行うcURLやFTPも利用できる様にコンパイルを行う．

　また，インストール後はphpinfo等を使った動作および環境の確認，libphp5.soを使ってのhttpd.confを編集しての Apacheとの連携の確認，php.iniのテンプレートからの作成や，セキュリティ向上およびUTF-8をベースに解説をしながらmbstring系の各個別設定手順，最後にMySQLiインタフェイスを使ってのデータベースとの接続稼働テストまでを説明する．

モジュールの入手
追加モジュールをインストール（libxml,zlib,libjpeg,libpng,libidn,curl）
PHPのインストール(configure,make install)

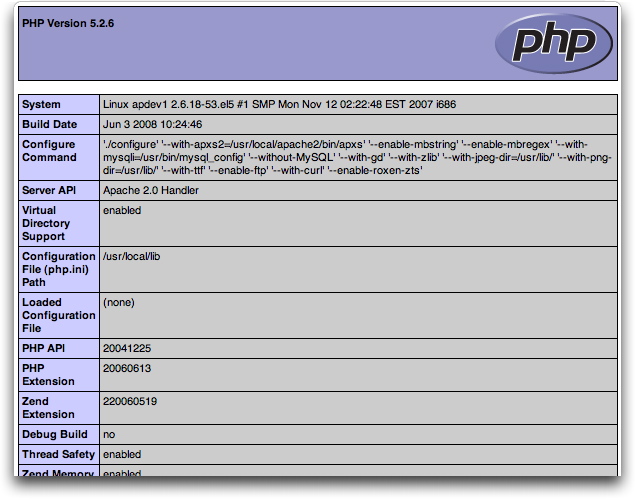

インストールの確認(phpinfo)
Apacheとの連携の確認
PHP.INIの確認
セキュリティ向上の為のPHPバナーオフ
セキュリティ向上の為のmagic_quotes_gpc設定
日本語設定（mbstring）
MySQLiインタフェイスを使ってMySQLに接続確認

　なお，この手順では，OpenSSLのインストールについては記載していない．

２．モジュールの入手

まずは，英語環境にしておく．
- これは特に理由はないが，いかに理由による．
  - コンパイル時に日本語がでると気持ち悪い．（個人的見解）
  - これで失敗した事が無い

[root@ujpdev1 InstallBin]# export LANG=C
[root@ujpdev1 InstallBin]#

モジュールを入手する．

[root@ujpdev1 InstallBin]# wget http://jp.php.net/get/php-5.2.6.tar.gz/from/this/
mirror
--17:31:48--  http://jp.php.net/get/php-5.2.6.tar.gz/from/this/mirror
Resolving jp.php.net... 61.195.146.164
Connecting to jp.php.net|61.195.146.164|:80... connected.
HTTP request sent, awaiting response... 302 Found
Location: http://jp.php.net/distributions/php-5.2.6.tar.gz [following]
--17:31:48--  http://jp.php.net/distributions/php-5.2.6.tar.gz
Connecting to jp.php.net|61.195.146.164|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 12046184 (11M) [application/x-gzip]
Saving to: `php-5.2.6.tar.gz'

100%[===========================================================================
=>] 12,046,184  4.54M/s   in 2.5s

17:31:51 (4.54 MB/s) - `php-5.2.6.tar.gz' saved [12046184/12046184]

[root@ujpdev1 InstallBin]#

入手したモジュールを展開する．

[root@ujpdev1 InstallBin]# tar xfz php-5.2.6.tar.gz [root@ujpdev1 InstallBin]#

展開したファイルを確認する．

[root@ujpdev1 InstallBin]# cd php-5.2.6
[root@ujpdev1 php-5.2.6]# ls -1
CODING_STANDARDS
CREDITS
EXTENSIONS
INSTALL
LICENSE
Makefile.frag
Makefile.gcov
Makefile.global
NEWS
README.CVS-RULES
README.EXTENSIONS
README.EXT_SKEL
README.PARAMETER_PARSING_API
README.PHP4-TO-PHP5-THIN-CHANGES
README.QNX
README.SELF-CONTAINED-EXTENSIONS
README.STREAMS
README.SUBMITTING_PATCH
README.TESTING
README.TESTING2
README.UNIX-BUILD-SYSTEM
README.UPDATE_5_2
README.WIN32-BUILD-SYSTEM
README.Zeus
README.input_filter
TODO
TODO-5.1
TODO-PHP5
TSRM
UPGRADING
Zend
acconfig.h
acconfig.h.in
acinclude.m4
aclocal.m4
build
buildconf
buildconf.bat
config.guess
config.sub
configure
configure.in
cvsclean
cvsclean.bat
ext
footer
generated_lists
genfiles
header
install-sh
ltmain.sh
main
makedist
makerpm
missing
mkinstalldirs
netware
pear
php.ini-dist
php.ini-recommended
php5.spec.in
regex
run-tests.php
sapi
scripts
server-tests-config.php
server-tests.php
snapshot
stamp-h.in
stub.c
tests
win32
[root@ujpdev1 php-5.2.6]#

Apacheのapxsが入っているディレクトリを確認する．
- apxsとは，Apache eXtenSiion toolの事で，PHP等をApacheの中から利用できるようにApacheを拡張するツール．
  - apxs - APache eXtenSion tool
    - http://httpd.apache.org/docs/2.0/ja/programs/apxs.html

[root@ujpdev1 php-5.2.6]# ls -la /usr/local/apache2/bin/apxs
-rwxr-xr-x 1 root root 22597 Jun  2 17:36 /usr/local/apache2/bin/apxs
[root@ujpdev1 php-5.2.6]#

apxsがあったので，Apacheがインストールされている事が確認できた．
- なお，RPM等でインストールされている場合には，上記のディレクトリと異なる場所に存在している事があるので，見つからない場合は，locateコマンド等で探す．

３．追加モジュールをインストールする

libxmlモジュールをインストールする．
まずは，モジュールのバージョンを確認する．

[root@ujpdev1 InstallBin]# ls -la libxml*
-rw-r--r-- 1 root root  816942 Jun  2 19:08 libxml2-2.6.26-2.1.2.1.i386.rpm
-rw-r--r-- 1 root root 2225764 Jun  2 19:12 libxml2-devel-2.6.26-2.1.2.1.i386.rpm
[root@ujpdev1 InstallBin]#

libxml関連モジュールは，既にインストールされており，バージョンアップとなるので-Uでアップグレードを行う．

[root@ujpdev1 InstallBin]# rpm -Uhv libxml2-2.6.26-2.1.2.1.i386.rpm
Preparing...                ########################################### [100%]
   1:libxml2                ########################################### [100%]
[root@ujpdev1 InstallBin]#

次に開発用ライブラリをインストールする．これが無いとヘッダファイルが無いのでPHPモジュールのインストールができない場合がある．

[root@ujpdev1 InstallBin]# rpm -Uhv libxml2-devel-2.6.26-2.1.2.1.i386.rpm
Preparing...                ########################################### [100%]
   1:libxml2-devel          ########################################### [100%]
[root@ujpdev1 InstallBin]#

次に，圧縮用ライブラリのzlibをインストールする．

[root@ujpdev1 base]# rpm -ihv zlib-devel-1.2.3-3.i386.rpm
warning: zlib-devel-1.2.3-3.i386.rpm: Header V3 DSA signature: NOKEY, key ID e8562897
Preparing...                ########################################### [100%]
   1:zlib-devel             ########################################### [100%]
[root@ujpdev1 base]#

次に，JPEG用の開発用ライブラリをインストールする．
このdevelパッケージが入っていないと，libjpeg.soへのリンクが作成されないでコンパイル時に困る．
なお，libjpeg本体は，もともとOSでインストールされているものを利用しているが，新しいバージョンが出ていればそれを適用しても良い．

[root@ujpdev1 libJPEG]# rpm -ihv libjpeg-devel-6b-37.i386.rpm
warning: libjpeg-devel-6b-37.i386.rpm: Header V3 DSA signature: NOKEY, key ID e8562897
Preparing...                ########################################### [100%]
   1:libjpeg-devel          ########################################### [100%]
[root@ujpdev1 libJPEG]#

次に，PNG関係のライブラリをインストールする．

[root@ujpdev1 libJPEG]# rpm -Uhv libpng-1.2.10-7.1.el5_0.1.i386.rpm
warning: libpng-1.2.10-7.1.el5_0.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID e85
62897
Preparing...                ########################################### [100%]
   1:libpng                 ########################################### [100%]
[root@ujpdev1 libJPEG]#

libjpegと同じ様に，PHPのコンパイル時にlibpng.soへのリンクが必要なのでインストールする．

[root@ujpdev1 libJPEG]# rpm -ihv libpng-devel-1.2.10-7.1.el5_0.1.i386.rpm
warning: libpng-devel-1.2.10-7.1.el5_0.1.i386.rpm: Header V3 DSA signature: NOKEY, key
 ID e8562897
Preparing...                ########################################### [100%]
   1:libpng-devel           ########################################### [100%]
[root@ujpdev1 libJPEG]#

次に，libidnをインストールする．
- このライブラリは，GNU IDNのライブラリで，国際化ドメイン名（IDN:Internationalized Domain Names）ワークグループによって定義された規格のCライブラリ．
とりあえずCURLを使う為に必要．

[root@ujpdev1 CURL]# rpm -ihv libidn-devel-0.6.5-1.1.i386.rpm
warning: libidn-devel-0.6.5-1.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID e8562
897
Preparing...                ########################################### [100%]
   1:libidn-devel           ########################################### [100%]
[root@ujpdev1 CURL]#

次に，CURLをインストールする．

[root@ujpdev1 CURL]# rpm -ihv curl-devel-7.15.5-2.el5.i386.rpm
warning: curl-devel-7.15.5-2.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID e856
2897
Preparing...                ########################################### [100%]
   1:curl-devel             ########################################### [100%]
[root@ujpdev1 CURL]#

これで今回必要なパッケージは事前にインストールできた．

４．PHPのインストール（configure,make install）

今回は，次の様なオプションをつけてインストールする．

オプション	説明
--with-apxs2	Apache2を使う為．
--enable-mbstring	日本語を利用する．
--enable-mbregex	日本語の正規表現を利用する．
--with-mysqli	MySQLiインタフェイスを利用する．
--without-MySQL	旧MySQLインタフェイスを利用しない
--with-gd	画像処理をするGDを利用する．
--with-zlib	画像処理で圧縮展開で利用するライブラリ．
--with-jpeg-dir	libjpegライブラリのインストールされている場所を指定．
--with-png-dir	libpngライブラリのインストールされている場所を指定．
--with-ttf	True Typeフォント1を利用する．
--enable-ftp	FTPを利用する．
--with-curl	cURLを利用する．
--with-openssl	OpenSSLを利用する．
--enable-roxen-zts	Apache2にて，mpworkerプロセスでコンパイルされている場合に指定．

実際に投入するconfigureコマンドは，以下の通り．

コピペ用

./configure --with-apxs2=/usr/local/apache2/bin/apxs
 --enable-mbstring --enable-mbregex
 --with-mysqli=/usr/bin/mysql_config --without-MySQL
 --with-gd --with-zlib --with-jpeg-dir=/usr/lib/
 --with-png-dir=/usr/lib/ --with-ttf --enable-ftp
 --with-openssl --with-curl --enable-roxen-zts

configureを事項する．

[root@ujpdev1 php-5.2.6]# ./configure --with-apxs2=/usr/local/apache2/bin/apxs --
enable-mbstring --enable-mbregex --with-mysqli=/usr/bin/mysql_config --without-
MySQL --with-gd --with-zlib --with-jpeg-dir=/usr/lib/ --with-png-dir=/usr/lib/ -
-with-ttf --enable-ftp --with-curl --with-openssl --enable-roxen-zts
creating cache ./config.cache
checking for Cygwin environment... no
checking for mingw32 environment... no
checking for egrep... grep -E
checking for a sed that does not truncate output... /bin/sed
checking host system type... i686-pc-linux-gnu
checking target system type... i686-pc-linux-gnu
checking for gcc... gcc
checking whether the C compiler (gcc  ) works... yes
checking whether the C compiler (gcc  ) is a cross-compiler... no
checking whether we are using GNU C... yes
checking whether gcc accepts -g... yes
checking how to run the C preprocessor... gcc -E
checking for icc... no
checking whether gcc and cc understand -c and -o together... yes
checking how to run the C preprocessor... gcc -E
checking for AIX... no
checking whether ln -s works... yes
checking for system library directory... lib
checking whether to enable runpaths... yes
checking if compiler supports -R... no
checking if compiler supports -Wl,-rpath,... yes
checking for re2c... no
configure: warning: You will need re2c 0.12.0 or later if you want to regenerate
PHP parsers.
checking for gawk... gawk
checking for bison... no
checking for byacc... no
checking for bison version... invalid
configure: warning: bison versions supported for regeneration of the Zend/PHP
parsers: 1.28 1.35 1.75 1.875 2.0 2.1 2.2 2.3 (found: none).
checking for flex... lex
checking for yywrap in -ll... no
checking for working const... yes
configure: warning: flex versions supported for regeneration of the Zend/PHP
parsers: 2.5.4  (found: none)
checking whether to force non-PIC code in shared modules... yes
checking whether /dev/urandom exists... yes
checking for pthreads_cflags... -pthread
checking for pthreads_lib...

Configuring SAPI modules
checking for AOLserver support... no
checking for Apache 1.x module support via DSO through APXS... no
checking for Apache 1.x module support... no
checking whether to enable Apache charset compatibility option... no
checking for Apache 2.0 filter-module support via DSO through APXS... no
checking for Apache 2.0 handler-module support via DSO through APXS... yes
checking for Apache 1.x (hooks) module support via DSO through APXS... no
checking for Apache 1.x (hooks) module support... no
checking whether to enable Apache charset compatibility option... no
checking for Caudium support... no
checking for CLI build... yes
checking for Continuity support... no
checking for embedded SAPI library support... no
checking for Zeus ISAPI support... no
checking for Milter support... no
checking for NSAPI support... no
checking for PHTTPD support... no
checking for Pi3Web support... no
checking whether Roxen module is build using ZTS... yes
checking for Roxen/Pike support...
checking for thttpd... no
checking for TUX... no
checking for webjames... no
checking for chosen SAPI module... apache2handler

Running system checks
checking for sendmail... /usr/sbin/sendmail
checking whether system uses EBCDIC... no
checking whether byte ordering is bigendian... no
checking whether writing to stdout works... This is the test message -- yes
checking for socket... yes
checking for socketpair... yes
checking for htonl... yes
checking for gethostname... yes
checking for gethostbyaddr... yes
checking for yp_get_default_domain... no
checking for __yp_get_default_domain... no
checking for yp_get_default_domain in -lnsl... yes
checking for dlopen... no
checking for __dlopen... no
checking for dlopen in -ldl... yes
checking for sin in -lm... yes
checking for res_search... no
checking for __res_search... no
checking for res_search in -lresolv... yes
checking for inet_aton... yes
checking for dn_skipname... no
checking for __dn_skipname... yes
checking for ANSI C header files... yes
checking for dirent.h that defines DIR... yes
checking for opendir in -ldir... no
checking for inttypes.h... yes
checking for stdint.h... yes
checking for dirent.h... yes
checking for ApplicationServices/ApplicationServices.h... no
checking for sys/param.h... yes
checking for sys/types.h... yes
checking for sys/time.h... yes
checking for netinet/in.h... yes
checking for alloca.h... yes
checking for arpa/inet.h... yes
checking for arpa/nameser.h... yes
checking for assert.h... yes
checking for crypt.h... yes
checking for fcntl.h... yes
checking for grp.h... yes
checking for ieeefp.h... no
checking for langinfo.h... yes
checking for limits.h... yes
checking for locale.h... yes
checking for monetary.h... yes
checking for mach-o/dyld.h... no
checking for netdb.h... yes
checking for pwd.h... yes
checking for resolv.h... yes
checking for signal.h... yes
checking for stdarg.h... yes
checking for stdlib.h... yes
checking for string.h... yes
checking for syslog.h... yes
checking for sysexits.h... yes
checking for sys/ioctl.h... yes
checking for sys/file.h... yes
checking for sys/mman.h... yes
checking for sys/mount.h... yes
checking for sys/poll.h... yes
checking for sys/resource.h... yes
checking for sys/select.h... yes
checking for sys/socket.h... yes
checking for sys/stat.h... yes
checking for sys/statfs.h... yes
checking for sys/statvfs.h... yes
checking for sys/vfs.h... yes
checking for sys/sysexits.h... no
checking for sys/varargs.h... no
checking for sys/wait.h... yes
checking for sys/loadavg.h... no
checking for termios.h... yes
checking for unistd.h... yes
checking for unix.h... no
checking for utime.h... yes
checking for sys/utsname.h... yes
checking for sys/ipc.h... yes
checking for dlfcn.h... yes
checking for assert.h... (cached) yes
checking for fopencookie... yes
checking for broken getcwd... no
checking for broken libc stdio... yes
checking whether struct tm is in sys/time.h or time.h... time.h
checking for tm_zone in struct tm... yes
checking for missing declarations of reentrant functions... done
checking for fclose declaration... ok
checking for tm_gmtoff in struct tm... yes
checking for struct flock... yes
checking for socklen_t... yes
checking size of size_t... 4
checking size of long long... 8
checking size of long long int... 8
checking size of long... 4
checking size of int... 4
checking size of intmax_t... 8
checking size of ssize_t... 4
checking size of ptrdiff_t... 4
checking for st_blksize in struct stat... yes
checking for st_blocks in struct stat... yes
checking for st_rdev in struct stat... yes
checking for size_t... yes
checking for uid_t in sys/types.h... yes
checking for struct sockaddr_storage... yes
checking for field sa_len in struct sockaddr... no
checking for IPv6 support... yes
checking for vprintf... yes
checking for alphasort... yes
checking for asctime_r... yes
checking for chroot... yes
checking for ctime_r... yes
checking for cuserid... yes
checking for crypt... no
checking for flock... yes
checking for ftok... yes
checking for funopen... no
checking for gai_strerror... yes
checking for gcvt... yes
checking for getloadavg... yes
checking for getlogin... yes
checking for getprotobyname... yes
checking for getprotobynumber... yes
checking for getservbyname... yes
checking for getservbyport... yes
checking for getrusage... yes
checking for gettimeofday... yes
checking for gmtime_r... yes
checking for getpwnam_r... yes
checking for getgrnam_r... yes
checking for getpwuid_r... yes
checking for grantpt... yes
checking for inet_ntoa... yes
checking for inet_ntop... yes
checking for inet_pton... yes
checking for isascii... yes
checking for link... yes
checking for localtime_r... yes
checking for lockf... yes
checking for lchown... yes
checking for lrand48... yes
checking for memcpy... yes
checking for memmove... yes
checking for mkstemp... yes
checking for mmap... yes
checking for nl_langinfo... yes
checking for perror... yes
checking for poll... yes
checking for ptsname... yes
checking for putenv... yes
checking for realpath... yes
checking for random... yes
checking for rand_r... yes
checking for regcomp... yes
checking for res_search... (cached) yes
checking for scandir... yes
checking for setitimer... yes
checking for setlocale... yes
checking for localeconv... yes
checking for setenv... yes
checking for setpgid... yes
checking for setsockopt... yes
checking for setvbuf... yes
checking for shutdown... yes
checking for sin... yes
checking for snprintf... yes
checking for srand48... yes
checking for srandom... yes
checking for statfs... yes
checking for statvfs... yes
checking for std_syslog... no
checking for strcasecmp... yes
checking for strcoll... yes
checking for strdup... yes
checking for strerror... yes
checking for strftime... yes
checking for strptime... yes
checking for strstr... yes
checking for strtok_r... yes
checking for symlink... yes
checking for tempnam... yes
checking for tzset... yes
checking for unlockpt... yes
checking for unsetenv... yes
checking for usleep... yes
checking for nanosleep... yes
checking for utime... yes
checking for vsnprintf... yes
checking for getaddrinfo... yes
checking for strlcat... no
checking for strlcpy... no
checking for getopt... yes
checking whether utime accepts a null argument... yes
checking for working alloca.h... (cached) yes
checking for alloca... yes
checking for declared timezone... yes
checking for type of reentrant time-related functions... POSIX
checking for readdir_r... yes
checking for type of readdir_r... POSIX
checking for in_addr_t... yes
checking for crypt_r... no

General settings
checking whether to include gcov symbols... no
checking whether to include debugging symbols... no
checking layout of installed files... PHP
checking path to configuration file... DEFAULT
checking where to scan for configuration files...
checking whether to enable safe mode by default... no
checking for safe mode exec dir... /usr/local/php/bin
checking whether to enable PHP's own SIGCHLD handler... no
checking whether to enable magic quotes by default... no
checking whether to explicitly link against libgcc... no
checking whether to enable short tags by default... yes
checking whether to enable dmalloc... no
checking whether to enable IPv6 support... yes
checking how big to make fd sets... using system default

Configuring extensions
checking whether to enable LIBXML support... yes
checking libxml2 install dir... no
checking for xml2-config path... /usr/bin/xml2-config
checking whether libxml build works... yes
checking for OpenSSL support... yes
checking for Kerberos support... no
checking for DSA_get_default_method in -lssl... yes
checking for pkg-config... /usr/bin/pkg-config
checking for PCRE support... yes
checking for ZLIB support... yes
checking if the location of ZLIB install directory is defined... no
checking for gzgets in -lz... yes
checking whether to enable bc style precision math functions... no
checking for BZip2 support... no
checking whether to enable calendar conversion support... no
checking whether to enable ctype functions... yes
checking for cURL support... yes
checking if we should use cURL for url streams... no
checking for cURL in default path... found in /usr
checking for cURL 7.10.5 or greater... libcurl 7.15.5
checking for SSL support in libcurl... yes
checking how to run the C preprocessor... gcc -E
checking for openssl support in libcurl... yes
checking for openssl/crypto.h... yes
checking for gnutls support in libcurl... no
checking for curl_easy_perform in -lcurl... yes
checking for curl_version_info in -lcurl... yes
checking for curl_easy_strerror in -lcurl... yes
checking for curl_multi_strerror in -lcurl... yes
checking size of long... (cached) 4
checking size of int... (cached) 4
checking for int32_t... yes
checking for uint32_t... yes
checking for sys/types.h... (cached) yes
checking for inttypes.h... (cached) yes
checking for stdint.h... (cached) yes
checking for string.h... (cached) yes
checking for stdlib.h... (cached) yes
checking for strtoll... yes
checking for atoll... yes
checking for strftime... (cached) yes
checking for QDBM support... no
checking for GDBM support... no
checking for NDBM support... no
checking for Berkeley DB4 support... no
checking for Berkeley DB3 support... no
checking for Berkeley DB2 support... no
checking for DB1 support... no
checking for DBM support... no
checking for CDB support... no
checking for INI File support... no
checking for FlatFile support... no
checking whether to enable DBA interface... no
checking whether to enable dbase support... no
checking whether to enable DOM support... yes
checking for xml2-config path... (cached) /usr/bin/xml2-config
checking whether libxml build works... (cached) yes
checking whether to enable EXIF (metadata from images) support... no
checking for FrontBase SQL92 (fbsql) support... no
checking for FDF support... no
checking whether to enable input filter support... yes
checking pcre install prefix... no
checking whether to enable FTP support... yes
checking OpenSSL dir for FTP... no
checking for GD support... yes
checking for the location of libjpeg... /usr/lib/
checking for the location of libpng... /usr/lib/
checking for the location of libXpm... no
checking for FreeType 1.x support... yes
checking for FreeType 2... no
checking for T1lib support... no
checking whether to enable truetype string function in GD... no
checking whether to enable JIS-mapped Japanese font support in GD... no
checking for fabsf... yes
checking for floorf... yes
checking for jpeg_read_header in -ljpeg... yes
checking for png_write_image in -lpng... yes
If configure fails try --with-xpm-dir=<DIR>
If configure fails try --with-freetype-dir=<DIR>
checking for GNU gettext support... no
checking for GNU MP support... no
checking whether to enable hash support... yes
checking whether byte ordering is bigendian... (cached) no
checking size of short... 2
checking size of int... (cached) 4
checking size of long... (cached) 4
checking size of long long... (cached) 8
checking for iconv support... yes
checking for iconv... yes
checking if iconv is glibc's... yes
checking if iconv supports errno... yes
checking if your cpp allows macro usage in include lines... yes
checking for IMAP support... no
checking for IMAP Kerberos support... no
checking for IMAP SSL support... no
checking for InterBase support... no
checking whether to enable JavaScript Object Serialization support... yes
checking for ANSI C header files... (cached) yes
checking for LDAP support... no
checking for LDAP Cyrus SASL support... no
checking whether to enable multibyte string support... yes
checking whether to enable multibyte regex support... yes
checking whether to check multibyte regex backtrack... yes
checking for external libmbfl... no
checking for variable length prototypes and stdarg.h... yes
checking for stdlib.h... (cached) yes
checking for string.h... (cached) yes
checking for strings.h... yes
checking for unistd.h... (cached) yes
checking for sys/time.h... (cached) yes
checking for sys/times.h... yes
checking for stdarg.h... (cached) yes
checking size of int... (cached) 4
checking size of short... (cached) 2
checking size of long... (cached) 4
checking for working const... (cached) yes
checking whether time.h and sys/time.h may both be included... yes
checking for working alloca.h... (cached) yes
checking for alloca... (cached) yes
checking for 8-bit clean memcmp... yes
checking for mcrypt support... no
checking for mhash support... no
checking whether to include mime_magic support... no
checking for MING support... no
checking for mSQL support... no
checking for MSSQL support via FreeTDS... no
checking for MySQL support... no
checking for specified location of the MySQL UNIX socket... no
checking for MySQLi support... yes
checking whether to enable embedded MySQLi support... no
checking for mysql_set_server_option in -lmysqlclient_r... yes
checking for mysql_stmt_field_count in -lmysqlclient_r... yes
checking for ncurses support... no
checking for Oracle (OCI8) support... no
checking whether to enable pcntl support... no
checking whether to enable PDO support... yes
checking for PDO_DBLIB support via FreeTDS... no
checking for Firebird support for PDO... no
checking for MySQL support for PDO... no
checking Oracle OCI support for PDO... no
checking for ODBC v3 support for PDO... no
checking for PostgreSQL support for PDO... no
checking for sqlite 3 support for PDO... yes
checking for PDO includes... checking for PDO includes... /InstallBin/php-5.2.6/
ext
checking size of char *... 4
checking for usleep... (cached) yes
checking for nanosleep... (cached) yes
checking for time.h... yes
checking for fdatasync in -lrt... yes
checking for PostgreSQL support... no
checking whether to enable POSIX-like functions... yes
checking for sys/mkdev.h... no
checking for seteuid... yes
checking for setegid... yes
checking for setsid... yes
checking for getsid... yes
checking for setpgid... (cached) yes
checking for getpgid... yes
checking for ctermid... yes
checking for mkfifo... yes
checking for mknod... yes
checking for getrlimit... yes
checking for getlogin... (cached) yes
checking for getgroups... yes
checking for makedev... no
checking for initgroups... yes
checking for getpwuid_r... (cached) yes
checking for getgrgid_r... yes
checking for working ttyname_r() implementation... yes
checking for PSPELL support... no
checking for libedit readline replacement... no
checking for readline support... no
checking for recode support... no
checking whether to enable reflection support... yes
checking whether to enable PHP sessions... yes
checking for mm support... no
checking whether pwrite works... yes
checking whether pread works... yes
checking whether to enable shmop support... no
checking whether to enable SimpleXML support... yes
checking for xml2-config path... (cached) /usr/bin/xml2-config
checking whether libxml build works... (cached) yes
checking for SNMP support... no
checking OpenSSL dir for SNMP... no
checking whether to enable UCD SNMP hack... no
checking whether to enable SOAP support... no
checking whether to enable sockets support... no
checking enable SPL suppport... yes
checking whether zend_object_value is packed... yes
checking for sqlite support... yes
checking whether to enable UTF-8 support in sqlite (default: ISO-8859-1)... no
checking for PDO includes... (cached) /InstallBin/php-5.2.6/ext
checking for lemon... no
configure: warning: lemon versions supported for regeneration of libsqlite
parsers: 1.0 (found: none).
checking size of char *... (cached) 4
checking for usleep... (cached) yes
checking for nanosleep... (cached) yes
checking for time.h... (cached) yes
checking whether flush should be called explicitly after a buffered io... no
checking for crypt in -lcrypt... yes
checking for standard DES crypt... yes
checking for extended DES crypt... no
checking for MD5 crypt... yes
checking for Blowfish crypt... no
checking for getcwd... yes
checking for getwd... yes
checking for asinh... yes
checking for acosh... yes
checking for atanh... yes
checking for log1p... yes
checking for hypot... yes
checking for glob... yes
checking for strfmon... yes
checking for nice... yes
checking for fpclass... no
checking for isinf... yes
checking for isnan... yes
checking for working fnmatch... yes
checking which regex library to use... php
checking whether rounding works as expected... no
checking for fork... yes
checking if your OS can spawn processes with inherited handles... yes
checking for res_nmkquery... no
checking for __res_nmkquery... yes
checking for res_nsend... no
checking for __res_nsend... yes
checking for dn_expand... yes
checking whether atof() accepts NAN... yes
checking whether atof() accepts INF... yes
checking whether HUGE_VAL == INF... yes
checking whether HUGE_VAL + -HUGEVAL == NAN... yes
checking whether strptime() declaration fails... no
checking for wchar.h... yes
checking for mblen... yes
checking for mbrlen... yes
checking for mbsinit... yes
checking for mbstate_t... yes
checking for Sybase support... no
checking for Sybase-CT support... no
checking whether to enable System V IPC support... no
checking whether to enable System V semaphore support... no
checking whether to enable System V shared memory support... no
checking for TIDY support... no
checking whether to enable tokenizer support... yes
checking whether to enable WDDX support... no
checking libexpat dir for WDDX... no
checking whether to enable XML support... yes
checking libexpat install dir... no
checking for xml2-config path... (cached) /usr/bin/xml2-config
checking whether libxml build works... (cached) yes
checking whether to enable XMLReader support... yes
checking for xml2-config path... (cached) /usr/bin/xml2-config
checking whether libxml build works... (cached) yes
checking for XMLRPC-EPI support... no
checking libexpat dir for XMLRPC-EPI... no
checking iconv dir for XMLRPC-EPI... no
checking whether to enable XMLWriter support... yes
checking for xml2-config path... (cached) /usr/bin/xml2-config
checking whether libxml build works... (cached) yes
checking for XSL support... no
checking for zip archive read/writesupport... no

Configuring PEAR
checking whether to install PEAR... yes

Configuring Zend
checking for bison version... (cached) invalid
configure: warning: bison versions supported for regeneration of the Zend/PHP
parsers: 1.28 1.35 1.75 1.875 2.0 2.1 2.2 2.3 (found: none).
checking for inttypes.h... (cached) yes
checking for stdint.h... (cached) yes
checking for limits.h... (cached) yes
checking for malloc.h... yes
checking for string.h... (cached) yes
checking for unistd.h... (cached) yes
checking for stdarg.h... (cached) yes
checking for sys/types.h... (cached) yes
checking for sys/time.h... (cached) yes
checking for signal.h... (cached) yes
checking for unix.h... (cached) no
checking for stdlib.h... (cached) yes
checking for mach-o/dyld.h... (cached) no
checking for dlfcn.h... (cached) yes
checking for size_t... (cached) yes
checking return type of signal handlers... void
checking for uint... yes
checking for ulong... yes
checking for int32_t... yes
checking for uint32_t... yes
checking for vprintf... (cached) yes
checking for 8-bit clean memcmp... (cached) yes
checking for working alloca.h... (cached) yes
checking for alloca... (cached) yes
checking for memcpy... (cached) yes
checking for strdup... (cached) yes
checking for getpid... yes
checking for kill... yes
checking for strtod... yes
checking for strtol... yes
checking for finite... yes
checking for fpclass... (cached) no
checking whether sprintf is broken... no
checking for finite... (cached) yes
checking for isfinite... no
checking for isinf... (cached) yes
checking for isnan... (cached) yes
checking whether fp_except is defined... no
checking for dlfcn.h... (cached) yes
checking whether dlsym() requires a leading underscore in symbol names... no
checking virtual machine dispatch method... CALL
checking whether to enable thread-safety... yes
checking whether to enable inline optimization for GCC... yes
checking whether to enable Zend debugging... no
checking whether to enable Zend multibyte... no
checking for inline... inline
checking target system is Darwin... no
checking for MM alignment and log values... done
checking for memory allocation using mmap(MAP_ANON)... yes
checking for memory allocation using mmap(/dev/zero)... yes
checking for mremap... yes

Configuring TSRM
checking for stdarg.h... (cached) yes
checking for pthreads_cflags... (cached) -pthread
checking for pthreads_lib... (cached)
checking for POSIX threads... yes

Configuring libtool
checking build system type... i686-pc-linux-gnu
checking for ld used by /InstallBin/php-5.2.6/meta_ccld... /usr/bin/ld
checking if the linker (/usr/bin/ld) is GNU ld... yes
checking for /usr/bin/ld option to reload object files... -r
checking for BSD-compatible nm... /usr/bin/nm -B
checking how to recognise dependent libraries... pass_all
checking for object suffix... o
checking for executable suffix... no
checking the maximum length of command line arguments... 32768
checking command to parse /usr/bin/nm -B output from /InstallBin/php-5.2.6/meta_
ccld object... ok
checking for objdir... .libs
checking for ar... ar
checking for ranlib... ranlib
checking for strip... strip
checking if /InstallBin/php-5.2.6/meta_ccld static flag  works... yes
checking if /InstallBin/php-5.2.6/meta_ccld supports -fno-rtti -fno-exceptions...
no
checking for /InstallBin/php-5.2.6/meta_ccld option to produce PIC... -fPIC
checking if /InstallBin/php-5.2.6/meta_ccld PIC flag -fPIC works... yes
checking if /InstallBin/php-5.2.6/meta_ccld supports -c -o file.o... yes
checking whether the /InstallBin/php-5.2.6/meta_ccld linker (/usr/bin/ld)
supports shared libraries... yes
checking whether -lc should be explicitly linked in... no
checking dynamic linker characteristics... GNU/Linux ld.so
checking how to hardcode library paths into programs... immediate
checking whether stripping libraries is possible... yes
checking if libtool supports shared libraries... yes
checking whether to build shared libraries... yes
checking whether to build static libraries... no

creating libtool
appending configuration tag "CXX" to libtool

Generating files
updating cache ./config.cache
creating ./config.status
creating php5.spec
creating main/build-defs.h
creating scripts/phpize
creating scripts/man1/phpize.1
creating scripts/php-config
creating scripts/man1/php-config.1
creating sapi/cli/php.1
creating main/php_config.h
main/php_config.h is unchanged
creating main/internal_functions.c
creating main/internal_functions_cli.c
+--------------------------------------------------------------------+
| License:                                                           |
| This software is subject to the PHP License, available in this     |
| distribution in the file LICENSE.  By continuing this installation |
| process, you are bound by the terms of this license agreement.     |
| If you do not agree with the terms of this license, you must abort |
| the installation process at this point.                            |
+--------------------------------------------------------------------+

Thank you for using PHP.

[root@ujpdev1 php-5.2.6]#

問題なくconfigureされた模様．
makeを行う．

[root@ujpdev1 php-5.2.6]# make
/bin/sh /InstallBin/php-5.2.6/libtool --silent --preserve-dup-deps --mode=
compile /InstallBin/php-5.2.6/meta_ccld  -Iext/openssl/ -I/InstallBin/php-5.2.6/
ext/openssl/ -DPHP_ATOM_INC -I/InstallBin/php-5.2.6/include -I/InstallBin/php-5.
2.6/main -I/InstallBin/php-5.2.6 -I/usr/include/libxml2 -I/usr/kerberos/include
-I/InstallBin/php-5.2.6/ext/date/lib -I/include -I/InstallBin/php-5.2.6/ext/
mbstring/oniguruma -I/InstallBin/php-5.2.6/ext/mbstring/libmbfl -I/InstallBin/
php-5.2.6/ext/mbstring/libmbfl/mbfl -I/usr/include/mysql -I/InstallBin/php-5.2.6
/TSRM -I/InstallBin/php-5.2.6/Zend  -D_REENTRANT  -I/usr/include -g -O2 -pthread
-DZTS  -prefer-non-pic -c /InstallBin/php-5.2.6/ext/openssl/openssl.c -o ext/
openssl/openssl.lo
/InstallBin/php-5.2.6/ext/openssl/openssl.c: In function 'php_openssl_x509_from_
zval':
/InstallBin/php-5.2.6/ext/openssl/openssl.c:862: warning: passing argument 1 of
'PEM_ASN1_read_bio' from incompatible pointer type

〜略〜


end/zend_exceptions.lo Zend/zend_strtod.lo Zend/zend_objects.lo Zend/zend_object
_handlers.lo Zend/zend_objects_API.lo Zend/zend_default_classes.lo Zend/zend_
execute.lo sapi/cli/php_cli.lo sapi/cli/php_cli_readline.lo sapi/cli/getopt.lo
main/internal_functions_cli.lo -lcrypt -lcrypt -lrt -lpng -lz -ljpeg -lcurl -lz
-lresolv -lm -ldl -lnsl -lxml2 -lz -lm -lssl -lcrypto -ldl -lz -lcurl -lgssapi_
krb5 -lkrb5 -lk5crypto -lcom_err -lresolv -ldl -lidn -lssl -lcrypto -lz -lxml2 -
lz -lm -lssl -lcrypto -ldl -lz -lmysqlclient_r -lz -lcrypt -lnsl -lm -lxml2 -lz
-lm -lcrypt -lxml2 -lz -lm -lxml2 -lz -lm -lxml2 -lz -lm -lcrypt  -o sapi/cli/
php

Build complete.
Don't forget to run 'make test'.

[root@ujpdev1 php-5.2.6]#

忘れない様にmake testを実施する様に書かれている．
現在セットアップしている構成では，4700程度のテストが行われ時間がかかる．
しかし，始めての構成の場合は確認した方が良いので，テスト実施を推奨する．
- なお，同じ構成で何度もセットアップを経験している場合ははスキップして良い．

[root@ujpdev1 php-5.2.6]# make test

Build complete.
Don't forget to run 'make test'.


=====================================================================
PHP         : /InstallBin/php-5.2.6/sapi/cli/php
PHP_SAPI    : cli
PHP_VERSION : 5.2.6
ZEND_VERSION: 2.2.0
PHP_OS      : Linux - Linux ujpdev1 2.6.18-53.el5 #1 SMP Mon Nov 12 02:22:48 EST
2007 i686
INI actual  : /InstallBin/php-5.2.6/tmp-php.ini
More .INIs  :
CWD         : /InstallBin/php-5.2.6
Extra dirs  :
=====================================================================
TIME START 2008-06-03 18:54:45
=====================================================================
PASS EXPECT [tests/run-test/test001.phpt]
PASS EXPECTF [tests/run-test/test002.phpt]
PASS EXPECTREGEX [tests/run-test/test003.phpt]


〜略〜



htmlentities() test 15 (setlocale / KOI8-R) [ext/standard/tests/strings/
htmlentities15.phpt] (warn: possibly braindead libc)
Test vsprintf() function : usage variations - string formats with non-string
values [ext/standard/tests/strings/vsprintf_variation8.phpt]
=====================================================================

You may have found a problem in PHP.
We would like to send this report automatically to the
PHP QA team, to give us a better understanding of how
the test cases are doing. If you don't want to send it
immediately, you can choose "s" to save the report to
a file that you can send us later.
Do you want to send this report now? [Yns]:

テストの結果，何か問題が発見されたようである．
- ここで，Yを選択と，メールアドレスの入力を求められ，PHP開発チームに送られる模様．
- nを選択するとノーリアクション．
sを選択して，テキストファイルでレポート作成．

o you want to send this report now? [Yns]: s
sh: autoconf: command not found
Please send /InstallBin/php-5.2.6/php_test_results_20080603_1859.txt to qa-
reports@lists.php.net manually, thank you.
[root@ujpdev1 php-5.2.6]#

エラーの内容を確認してみると，次の通り．

[root@ujpdev1 php-5.2.6]# cat php_test_results_20080603_1859.txt

=====================================================================
FAILED TEST SUMMARY
---------------------------------------------------------------------
Bug #16069 (ICONV transliteration failure) [ext/iconv/tests/bug16069.phpt]
iconv stream filter [ext/iconv/tests/iconv_stream_filter.phpt]
Test mb_substr() function : basic functionality [ext/mbstring/tests/mb_substr_basic.php
t]
Test closedir() function : usage variations - close a file pointer [ext/standard/tests/
dir/closedir_variation3.phpt]
Test readdir() function : usage variations - empty directories [ext/standard/tests/dir/
readdir_variation2.phpt]
Test readdir() function : usage variations - use file pointers [ext/standard/tests/dir/
readdir_variation7.phpt]
Test rewinddir() function : basic functionality [ext/standard/tests/dir/rewinddir_basic
.phpt]
Test rewinddir() function : usage variations - operate on a closed directory [ext/stand
ard/tests/dir/rewinddir_variation2.phpt]
Test rewinddir() function : usage variations - file pointers [ext/standard/tests/dir/re
winddir_variation3.phpt]
Test bindec() - basic function test bindec() [ext/standard/tests/math/bindec_basic.phpt
]
htmlentities() test 2 (setlocale / fr_FR.ISO-8859-15) [ext/standard/tests/strings/htmle
ntities02.phpt] (warn: possibly braindead libc)
htmlentities() test 3 (setlocale / de_DE.ISO-8859-1) [ext/standard/tests/strings/htmlen
tities03.phpt]
htmlentities() test 15 (setlocale / KOI8-R) [ext/standard/tests/strings/htmlentities15.
phpt] (warn: possibly braindead libc)
Test vsprintf() function : usage variations - string formats with non-string values [ex
t/standard/tests/strings/vsprintf_variation8.phpt]
=====================================================================

ICONVは日本語変換系で，利用していなければ無視して問題ないレベルである．
ちなみに，Bug #16069は，PHP5.2.5時点でレポートされている模様．
上記では，問題ないと判断する．
make installを実行する．

[root@ujpdev1 php-5.2.6]# make install
Installing PHP SAPI module:       apache2handler
/usr/local/apache2/build/instdso.sh SH_LIBTOOL='/usr/local/apache2/build/libtool
' libphp5.la /usr/local/apache2/modules
/usr/local/apache2/build/libtool --mode=install cp libphp5.la /usr/local/apache2
/modules/
cp .libs/libphp5.so /usr/local/apache2/modules/libphp5.so
cp .libs/libphp5.lai /usr/local/apache2/modules/libphp5.la
libtool: install: warning: remember to run `libtool --finish /www/system/
InstallBin/php-5.2.6/libs'
chmod 755 /usr/local/apache2/modules/libphp5.so
[activating module `php5' in /usr/local/apache2/conf/httpd.conf]
Installing PHP CLI binary:        /usr/local/bin/
Installing PHP CLI man page:      /usr/local/man/man1/
Installing build environment:     /usr/local/lib/php/build/
Installing header files:          /usr/local/include/php/
Installing helper programs:       /usr/local/bin/
  program: phpize
  program: php-config
Installing man pages:             /usr/local/man/man1/
  page: phpize.1
  page: php-config.1
Installing PEAR environment:      /usr/local/lib/php/
[PEAR] Console_Getopt - already installed: 1.2.3
[PEAR] Archive_Tar    - already installed: 1.3.2
[PEAR] Structures_Graph- already installed: 1.0.2
[PEAR] PEAR           - already installed: 1.7.1
Wrote PEAR system config file at: /usr/local/etc/pear.conf
You may want to add: /usr/local/lib/php to your php.ini include_path
Installing PDO headers:          /usr/local/include/php/ext/pdo/
[root@ujpdev1 php-5.2.6]#

ここまでで，インストール完了．

５．インストールの確認

インストールされたバージョンを確認する．

[root@ujpdev1 php-5.2.6]# php -v
PHP 5.2.6 (cli) (built: Jun  3 2008 10:26:01)
Copyright (c) 1997-2008 The PHP Group
Zend Engine v2.2.0, Copyright (c) 1998-2008 Zend Technologies
[root@ujpdev1 php-5.2.6]#

phpinfoを確認する．

設定したモジュールは有効になっている事が確認できた．

６．Apacheとの連携の確認

これまでの手順で，インストールと，モジュールの確認まで完了しているので，Apache2との連携について確認する．
Apache2と連携する為のライブラリが作成されているか，確認する．

[root@ujpdev1 php-5.2.6]# ls -la /usr/local/apache2/modules/libphp5.so
-rwxr-xr-x 1 root root 20687791 Jun  3 10:26 /usr/local/apache2/modules/libphp5.so
[root@ujpdev1 php-5.2.6]#

次に，httpd.confファイルの中身を確認する．
まずは，LoadModule句でlibphp5.soが記述されているか確認する．
正しくインストールされていれば，自動的に追加されているはず．

LoadModule句

LoadModule userdir_module modules/mod_userdir.so
LoadModule alias_module modules/mod_alias.so
LoadModule rewrite_module modules/mod_rewrite.so
LoadModule php5_module        modules/libphp5.so

<IfModule !mpm_netware_module>
<IfModule !mpm_winnt_module>
#

追加されている事が確認できた．
次に，デフォルトで表示されるインデックスページへファイル名の登録設定を行う．

DirectoryIndex

#
# DirectoryIndex: sets the file that Apache will serve if a directory
# is requested.
#
<IfModule dir_module>
    DirectoryIndex index.php index.html
</IfModule>

#
# The following lines prevent .htaccess and .htpasswd files from being

これで，index.htmlより先にindex.phpファイルが呼び出される設定となった．
次に，拡張子とそのファイルタイプをAddTypeで設定する．

AddType

    #
    #AddType text/html .shtml
    #AddOutputFilter INCLUDES .shtml

#PHP
    AddType application/x-httpd-php .php .phtml
    AddType application/x-httpd-php-source .phps
</IfModule>

#
# The mod_mime_magic module allows the server to use various hints from the
# contents of the file itself to determine its type.  The MIMEMagicFile
# directive tells the module where the hint definitions are located.
#
#MIMEMagicFile conf/magic

これでApacheとの連携を試してみる為に，phpinfoを表示させるプログラムを稼働させてみる．
まずは，DocumentRootを確認する．

[root@ujpdev1 php-5.2.6]# grep DocumentRoot /usr/local/apache2/conf/httpd.conf
# DocumentRoot: The directory out of which you will serve your
DocumentRoot "/usr/local/apache2/htdocs"
# This should be changed to whatever you set DocumentRoot to.
    # access content that does not live under the DocumentRoot.
[root@ujpdev1 php-5.2.6]#

DocumentRoot配下に，phpinfo()関数を実行する為のプログラムを設置する．

[root@ujpdev1 php-5.2.6]# echo "<?phpinfo();?>" > /usr/local/apache2/htdocs/phpinstalltest.php
[root@ujpdev1 php-5.2.6]# cat /usr/local/apache2/htdocs/phpinstalltest.php
<?phpinfo();?>
[root@ujpdev1 php-5.2.6]#

なお，このときにphpinfo.php等の安易に推測できるファイル名としない．
httpd.confに，ServerNameが設定されているか確認する．

[root@ujpdev1 php-5.2.6]# grep ServerName /usr/local/apache2/conf/httpd.conf
# ServerName gives the name and port that the server uses to identify itself.
#ServerName www.example.com:80
ServerName ap1.ujp.jp:80
[root@ujpdev1 php-5.2.6]#

Apacheを起動実行してみる．

[root@ujpdev1 php-5.2.6]# /usr/local/apache2/bin/apachectl start
[root@ujpdev1 php-5.2.6]#

Webブラウザで，URLを呼び出してみる．

この様に表示されたので，ApacheとPHPが連携して動作している事が確認できる．

７．PHP.INIの作成

PHPの設定ファイルを追加する．
まずは，テンプレートファイルを確認する．

[root@ujpdev1 php-5.2.6]# ls -la php.ini-dist
-rw-r--r-- 1 1002 1002 45030 Feb 11 09:01 php.ini-dist
[root@ujpdev1 php-5.2.6]#

php.iniファイルがどこに保存される様に設定されているか，確認する．

[root@ujpdev1 php-5.2.6]# php -i|grep php.ini
Configuration File (php.ini) Path => /usr/local/lib
[root@ujpdev1 php-5.2.6]#

php.iniファイルが既にあるのか，確認する．

[root@ujpdev1 php-5.2.6]# ls -la /usr/local/lib/php.ini
ls: /usr/local/lib/php.ini: No such file or directory
[root@ujpdev1 php-5.2.6]#

ファイルが無いので，テンプレートを複写して利用する．

[root@ujpdev1 php-5.2.6]# cp php.ini-dist /usr/local/lib/php.ini
[root@ujpdev1 php-5.2.6]#

また，OSインストール時等に，/etc/php.iniファイルが作成されている場合がある．

[root@ujpdev1 php-5.2.6]# ls -la /etc/php.ini
-rw-r--r-- 1 root root 45078 Sep 20  2007 /etc/php.ini
[root@ujpdev1 php-5.2.6]# m

面倒なので，これはリネームしておく．

[root@ujpdev1 php-5.2.6]# mv /etc/php.ini /etc/php.ini.org
[root@ujpdev1 php-5.2.6]#

これは意図しない動作等を防ぐためである．

８．セキュリティ向上の為のPHPのバナー表示のオフ

PHPのバナーを表示しない様に設定する．
バナーが表示されるとPHPのバージョンが外部からのアクセスでわかってしまうので，特定のバージョンのセキュリティホールが発見されている場合はアタックを受けやすいと考えられる．
expose_phpをoffにする事で，PHPのバージョン番号を表示しない様になる．

変更前

; Decides whether PHP may expose the fact that it is installed on the server
; (e.g. by adding its signature to the Web server header).  It is no security
; threat in any way, but it makes it possible to determine whether you use PHP
; on your server or not.
expose_php = On


;;;;;;;;;;;;;;;;;;;
; Resource Limits ;
;;;;;;;;;;;;;;;;;;;

変更後

; Decides whether PHP may expose the fact that it is installed on the server
; (e.g. by adding its signature to the Web server header).  It is no security
; threat in any way, but it makes it possible to determine whether you use PHP
; on your server or not.
;expose_php = On
expose_php = Off


;;;;;;;;;;;;;;;;;;;
; Resource Limits ;
;;;;;;;;;;;;;;;;;;;

設定前の状態を確認する．

[root@ujpdev1 php-5.2.6]# curl -I http://localhost
HTTP/1.1 200 OK
Date: Tue, 03 Jun 2008 03:31:53 GMT
Server: Apache/2.2.8 (Unix) mod_ssl/2.2.8 OpenSSL/0.9.8b DAV/2 PHP/5.2.6
Last-Modified: Sat, 20 Nov 2004 20:16:24 GMT
ETag: "34889d-2c-3e9564c23b600"
Accept-Ranges: bytes
Content-Length: 44
Content-Type: text/html

[root@ujpdev1 php-5.2.6]#

このリクエストでは，HTTPのヘッダ情報のみを表示している．
PHPのバージョン番号が表示されている．
先ほど編集したPHP.INIが反映される様に，Apacheを再起動する．

[root@ujpdev1 php-5.2.6]# /usr/local/apache2/bin/apachectl stop
[root@ujpdev1 php-5.2.6]# /usr/local/apache2/bin/apachectl start
[root@ujpdev1 php-5.2.6]#

再度ヘッダ情報を確認する．

[root@ujpdev1 php-5.2.6]# curl -I http://localhost
HTTP/1.1 200 OK
Date: Tue, 03 Jun 2008 03:32:37 GMT
Server: Apache/2.2.8 (Unix) mod_ssl/2.2.8 OpenSSL/0.9.8b DAV/2
Last-Modified: Sat, 20 Nov 2004 20:16:24 GMT
ETag: "34889d-2c-3e9564c23b600"
Accept-Ranges: bytes
Content-Length: 44
Content-Type: text/html

[root@ujpdev1 php-5.2.6]#

PHPのバージョンが表示されなくなった事が確認できた．

９．セキュリティ向上の為のmagic_quotes_gpcの設定

magic_quotes_gpcは，セキュリティ上好ましくないので，offにする．
デフォルトでは，以下の様にonとなっている．

変更前

; Magic quotes
;

; Magic quotes for incoming GET/POST/Cookie data.
magic_quotes_gpc = On

; Magic quotes for runtime-generated data, e.g. data from SQL, from exec(), etc.
magic_quotes_runtime = Off

変更後

; Magic quotes
;

; Magic quotes for incoming GET/POST/Cookie data.
;magic_quotes_gpc = On
magic_quotes_gpc = Off

; Magic quotes for runtime-generated data, e.g. data from SQL, from exec(), etc.
magic_quotes_runtime = Off

magic_quotes_gpcのGPCは，GET/POST/Cookieの略．
- 概略
  - GPCからのデータ受け渡しの際には，エスケープ処理が行われる．
  - 以下の問題は，PHP5の実装で．
- 問題１　論理的エラーを生む可能性
  - GCP以外の方法で受け渡されたデータは，エスケープ処理が行われていない．
    - データベース，他システム連携，$_ENVで取得する環境変数等
  - 問題は，エスケープされているものとされないものが混在する複雑性．
    - 混在する事によって，二重エスケープや漏れが発生する．
- 問題２　実装上の問題
  - 文字エンコーディングが，latin 1を前提としてエスケープ処理をしている
    - バージョンを確認する必要があるが．．．
  - MySQLのエスケープを念頭において実装されている．
ということで，offにしておく．

１０．日本語設定（mbstring）

mbstring(マルチバイト)の設定について説明する．
なお，今回はUTF8の利用を前提とする．
まずは，デフォルトの文字コード．

変更前

;
; PHP's built-in default is text/html
default_mimetype = "text/html"
;default_charset = "iso-8859-1"

; Always populate the $HTTP_RAW_POST_DATA variable.
;always_populate_raw_post_data = On

変更後

;
; PHP's built-in default is text/html
default_mimetype = "text/html"
;default_charset = "iso-8859-1"
default_charset = "UTF-8"

; Always populate the $HTTP_RAW_POST_DATA variable.
;always_populate_raw_post_data = On

PHPが生成した出力結果をHTTPヘッダで指定するときに利用．
- デフォルトは指定されていない．
- 文字コードを不確かな状態にしておくとエンコード/デコードの際にXSS(クロスサイトスクリプティングの)の脆弱性を招く可能性が高くなる．
次に，languageを設定する．

変更前

[mbstring]
; language for internal character representation.
;mbstring.language = Japanese

; internal/script encoding.

変更後

[mbstring]
; language for internal character representation.
;mbstring.language = Japanese
mbstring.language = Japanese

; internal/script encoding.

これは明示的に日本語だと認識させる．
次に，PHPのスクリプト（プログラム）を保存するときの文字コードについて指定する．

変更前

; internal/script encoding.
; Some encoding cannot work as internal encoding.
; (e.g. SJIS, BIG5, ISO-2022-*)
;mbstring.internal_encoding = EUC-JP

変更後

 internal/script encoding.
; Some encoding cannot work as internal encoding.
; (e.g. SJIS, BIG5, ISO-2022-*)
;mbstring.internal_encoding = EUC-JP
mbstring.internal_encoding = UTF-8

プログラムファイルの文字コードは，UTF-8として設定するため，internal_encodingをUTF-として設定する．

変更前
; http input encoding. ;mbstring.http_input = auto
変更後
; http input encoding. ;mbstring.http_input = auto mbstring.http_input = pass

クライアント側のから入力されたデータは，設定は，変換せずに通す設定とする．
次は，出力の設定．

変更前

; http output encoding. mb_output_handler must be
; registered as output buffer to function
;mbstring.http_output = SJIS

変更後

; http output encoding. mb_output_handler must be
; registered as output buffer to function
;mbstring.http_output = SJIS
mbstring.http_output = pass

これもプログラム側での設定を有効とする為に，passとする．
次は，自動的にエンコードするかどうかの設定．
透過的に変換を行う場合はOnにする．

変更前

; enable automatic encoding translation according to
; mbstring.internal_encoding setting. Input chars are
; converted to internal encoding by setting this to On.
; Note: Do _not_ use automatic encoding translation for
;       portable libs/applications.
;mbstring.encoding_translation = Off

変更後

; enable automatic encoding translation according to
; mbstring.internal_encoding setting. Input chars are
; converted to internal encoding by setting this to On.
; Note: Do _not_ use automatic encoding translation for
;       portable libs/applications.
;mbstring.encoding_translation = Off
mbstring.encoding_translation = Off

ここでは自動的に変更しない様にする為に，offとして明示的に設定する．
次は，自動エンコーディングをするときの，文字コードのい評価順．
- 指定する場合は，detect_order = UTF-8, SJIS, EUC-JP等とする．

変更前
; automatic encoding detection order. ; auto means ;mbstring.detect_order = auto
変更後
; automatic encoding detection order. ; auto means ;mbstring.detect_order = auto

自動エンコードをoffにしているので，設定していない．
次は，substituteキャラクターの設定．
- substituteとは，「代替え」の意味で，無効な文字があった場合の設定となる．

変更前

; substitute_character used when character cannot be converted
; one from another
;mbstring.substitute_character = none;

変更後

; substitute_character used when character cannot be converted
; one from another
;mbstring.substitute_character = none;
mbstring.substitute_character = none;

無効な文字なので，出力しない為に，noneを明示的に設定する．

１１．MySQLiインタフェイスを使ってMySQLに接続確認

次の様なプログラムを用意する．

[root@ujpdev1 php-5.2.6]# cat sqli.php
<?php

/* create a connection object which is not connected */
$mysqli = mysqli_init();

/* set connection options */
$mysqli->options(MYSQLI_INIT_COMMAND, "SET AUTOCOMMIT=0");
$mysqli->options(MYSQLI_OPT_CONNECT_TIMEOUT, 5);

/* connect to server */
$mysqli->real_connect('server', 'user', 'pass', 'databasename');

/* check connection */
if (mysqli_connect_errno()) {
    printf("Connect failed: %s￥n", mysqli_connect_error());
    exit();
}

printf ("Connection: %s￥n.", $mysqli->host_info);

$mysqli->close();
?>
[root@ujpdev1 php-5.2.6]#

ユーザ＆パスワード等を合わせて，接続してみる．

正しく接続できた場合

[root@ujpdev1 php-5.2.6]# php sqli.php Connection: Localhost via UNIX socket
[root@ujpdev1 php-5.2.6]#

認証エラーがでた場合

[root@ujpdev1 php-5.2.6]# php sqli.php

Warning: mysqli::real_connect(): (28000/1045): Access denied for user 'root'@'
localhost' (using password: YES) in /InstallBin/php-5.2.6/sqli.php on line 11
Connect failed: Access denied for user 'root'@'localhost' (using password: YES)
[root@ujpdev1 php-5.2.6]#

どちらにしてもデータベースアクセス用のライブラリが呼び出され，接続を試みている事がわかる．
